Sheldon Engineering, Inc. Centrifugal Air Handling Fans |
||
 |

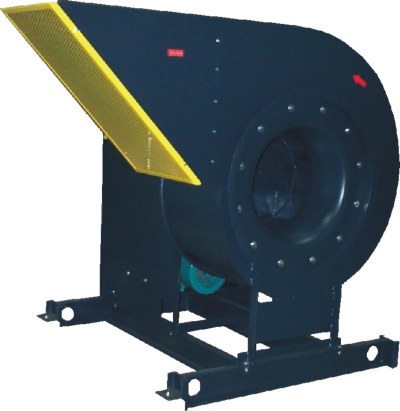

Utility Sets
[Series 1100] SIZES: 12" - 36" Wheel Diameter CLASS: I, II PERFORMANCE: 1,500 to 30,000 cfm and up to 8" SP. APPLICATION: Commercial HVAC and light industrial ARRANGEMENT: 10 DESIGN: Standard motor and belt weather cover with sloped surface for better protection from the elements. These packaged fan sets are an economical choice for a variety of air handling applications. Foward Curve models are also available. |
DOWNLOADS
1100 Series Single Page
1100 Series Technical Catalogue 3000 Series Single Page 3000 Series Technical Catalogue 6100 Series Single Page 6100 Series Technical Catalogue 6200 Series Single Page 6200 Series Technical Catalogue 8000 Series Single Page 8000 Series Technical Catalogue AVAILABLE FEATURES INCLUDE
|
 |

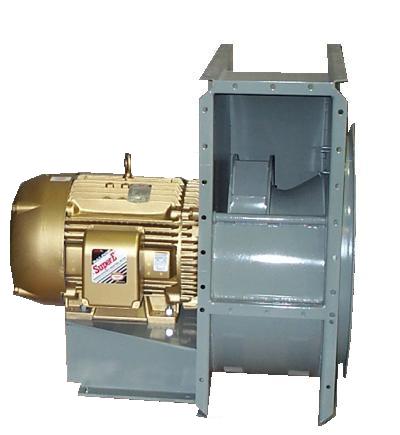

Versatility Sets
[Series 6100 Unifoil & 6200 Ultrafoil] WHEELS: Backward Curve (UNIFOIL) and Airfoil (ULTRAFOIL) SIZES: 12" - 49" Wheel Diameter CLASS: I, II, & III PERFORMANCE: 1,500 to 70,000 cfm and up to 13" SP. APPLICATION: Commercial HVAC and light industrial. Commonly used in processes such as dust collection. ARRANGEMENT: 1, 4 & 9 DESIGN: Robust square design with a small footprint provides a wide range of mounting possibilities |
|
 |

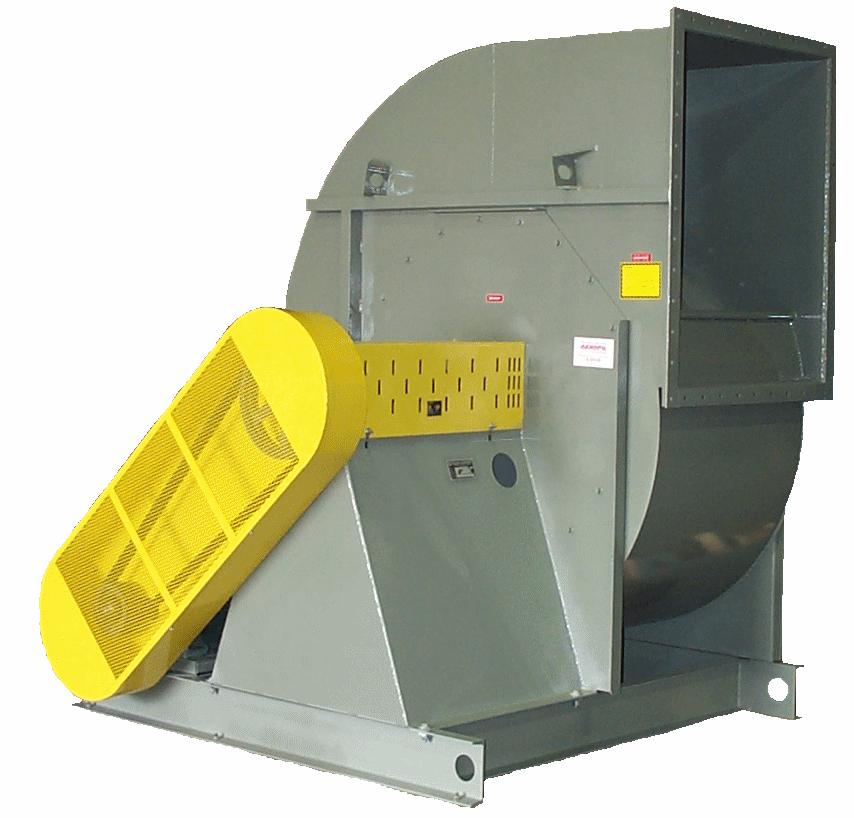

Industrial Unifoil (Backward Curve)
[Series 3000] SIZES: 12" - 89" Wheel Diameter CLASS: I, II, III and IV PERFORMANCE: 1,500 to 200,000 cfm and up to 12" SP. APPLICATION: Light to heavy industrial. Processes or HVAC systems. Optional high heat design for applications. ARRANGEMENT: 1, 3, 8 and 9. DESIGN: Robust design with a reinforcing exterior ribs for added stiffness. SWSI and DWDI designs are both available. |
|
 |

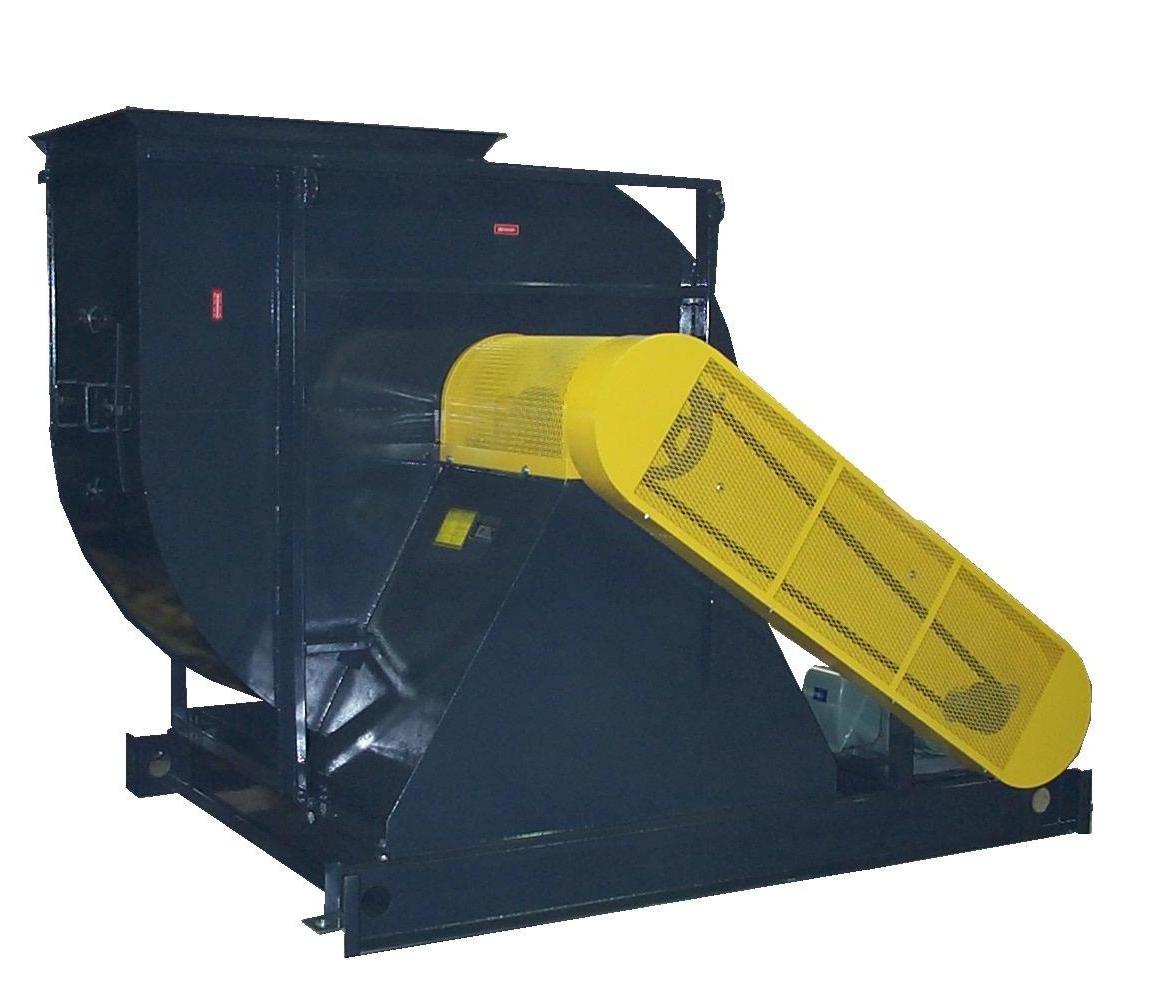

Industrial Ultrafoil (Airfoil)
[Series 8000] SIZES: 12" - 89" Wheel Diameter CLASS: I, II, III and IV PERFORMANCE: 1,500 to 200,000 cfm and up to 12" SP. APPLICATION: Light to heavy industrial. Processes or HVAC systems. Optional high heat design. ARRANGEMENT: 1, 3, 8 and 9. DESIGN: Airfoil blades provide an efficient use motor power. Robust design with a reinforcing exterior ribs for added stiffness. SWSI and DWDI designs are both available. |
|
