INDUSTRIAL FANS

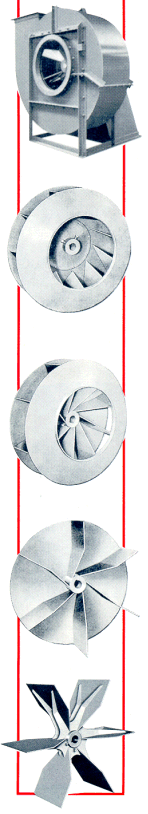

[SERIES 9000] SIZES: 12¼" - 85¼" Wheel Diameter CLASS: I, II, III, IV PERFORMANCE: Over 90,000 CFM to 40" SP. APPLICATION: The heavy duty, easy to maintain industrial fans are available in four different wheel configurations, each designed for a special material handling application from coarse, sticky materials to lab exhaust fumes. |
|
|
SERIES: 9000 XB
[THE "XB" WHEEL] APPLICATION: Has the highest efficiency of the four types shown. It is designed to handle air only or air containing fumes with a small quantity of fine dust. It is not recommended for handling coarse materials when they must pass through the fan. This wheel is utilized on applications such as hot gas, general supply or exhaust fan in many industrial processes and may also be used as an induced draft fan in power plants. |
||
|
SERIES: 9000 XS
[THE "XS" WHEEL] APPLICATION: Is used where the air contains granular material which passes directly through the fan. The radial-type blades are more wear resistant than those of the XB wheel. It is widely used in conveying systems for sawdust, chips, grain, etc., with static pressures up to 16" in the standard design. |
||
|
SERIES: 9000 XC
[THE "XC" WHEEL] APPLICATION: Is a modification of the XS with the same number of blades but with no shroud. IT is used primarily as an exhauster handling stringy materials such as long shavings, rags, etc., which may be fed directly into the fan inlet. |
||
|
SERIES: 9000 XO
[THE "XO" WHEEL] APPLICATION: Is another type of radial-bladed exhauster. The spider-type construction is designed for extremely rugged service, handling air containing knots, blocks, paper trim, silage or other heavy and bulky materials. This wheel is sometimes used as a "chopper" for fibrous materials such as silage and paper trim as it is fed into the fan; in this application it is called an X0-CT wheel. |
||
